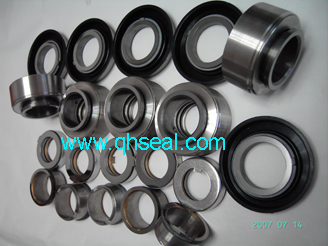

| SXD |
| Replace AES T05 |
| |
|
|
|
|
|
|
|
| Main Characteristics: |
| Pressure: 1.2Mpa |
| Speed: 10m/s |
| Temperature: -300C 」 2000C |
|
| MATERIALS: |
| Seal Face: SIC/TC |
| Stationary Ring: SIC/TC |
| O-Ring: NBR/EPDM/VITON |
| Spring: SS304/SS316 |
| Rotary Seat: SS304/SS316 |
| Stationary Seat: NBR(SS304) |
| Drive Ring: SS304/SS316 |
| Retainer: SS304/SS316 |
| Elastic Screw: SS304/SS316 |
|
Model |
d |
D |
D1 |
L1 |
L3 |
|
QH XD-30 |
30.0 |
50.0 |
46.0 |
37.6 |
24.6 |
|
QH XD-35 |
35.0 |
67.0 |
53.5 |
42.8 |
10.3 |
|
|
