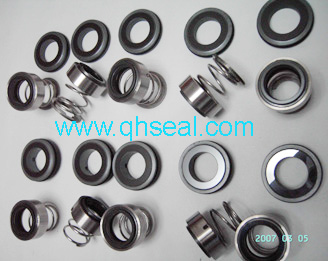

| Replace AES T01F |
| |
|
|
|
|
|
|
|
| Main Characteristics: |
| Pressure: 1.2Mpa |
| Speed: 10m/s |
| Temperature: -200C 」 1200C |
|
| MATERIALS: |
| Seal Face: Carbon/SIC/TC |
| Stationary Ring: Ceramic/SIC/TC |
| Secondary Seals: NBR/EPDM/VITON |
| Spring&Other Parts: SS304/SS316 |
|
Model |
d3 |
d7 |
l1 |
l4 |
l4b |
|
SA01F-22 |
36.0 |
41.2 |
20.0 |
7.5 |
N/A |
|
SAE01F-30 |
43.8 |
48.0 |
22.0 |
7.6 |
26.0 |
|
SAE01F-35 |
48.9 |
55.5 |
26.0 |
8.6 |
26.0 |
|
