Main Characteristics:

Pressure: 1.0Mpa

Speed: 10m/s

Temperature: -300C ∽ 2200C

MATERIALS:

Seal Face: Carbon/SIC/TC

Stationary Ring: Ceramic/SIC/TC

Secondary Ring: NBR/VITON/EPDM

Spring & Other Parts: SS304/SS316

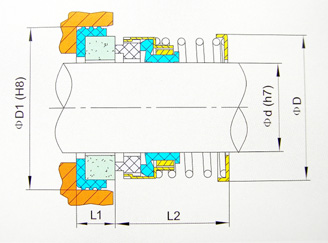

Model	d	D	D1	L1	L2
SBIA-14	14	27	30	5	18.7
SBIA-16	16	28.5	32	5	21
SBIA-18	18	30.5	35	7.5	22.5
SBIA-20	20	31.5	35	8	21
SBIA-24	24	40.2	39	8	25.5
SBIA-25	25	39	40	8	25.5
SBIA-28	28	42	43	8	25.5
SBIA-30	30	44	45	9	25.5
SBIA-32	32	46	48	9	33.5
SBIA-33	33	47	48	9	33.5
SBIA-35	35	49	50	9	33.5
SBIA-38	38	54	56	9	33.5
SBIA-40	40	56	58	9	33.5
SBIA-43	43	59	61	9.5	36.5
SBIA-45	45	61	63	9.5	38
SBIA-48	48	64	66	9.5	38
SBIA-50	50	66	70	9.5	38
SBIA-53	53	69	73	9.5	41
SBIA-55	55	71	75	9.5	41
SBIA-58	58	78	78	9.5	42
SBIA-60	60	80	80	9.5	42
SBIA-65	65	87.2	85	9.5	43
SBIA-70	70	90	92	11	45
SBIA-75	60	80	80	12	48
SBIA-80	60	80	80	12	55
SBIA-85	60	80	80	12	64.2
SBIA-90	60	80	80	12	66.2
